    4.3 inch lcd display 480*272 Resolution resistive touch panel

    Ask Lasest Price
    Brand Name : HETECH
    Model Number : HC043TE30040-B80V.1
    Certification : ISO9001,ISO14001,ISO13485,IATF16949
    Payment Terms : T/T
    Supply Ability : 50K/month
    Delivery Time : 4-6weeks
    • Product Details
    • Company Profile

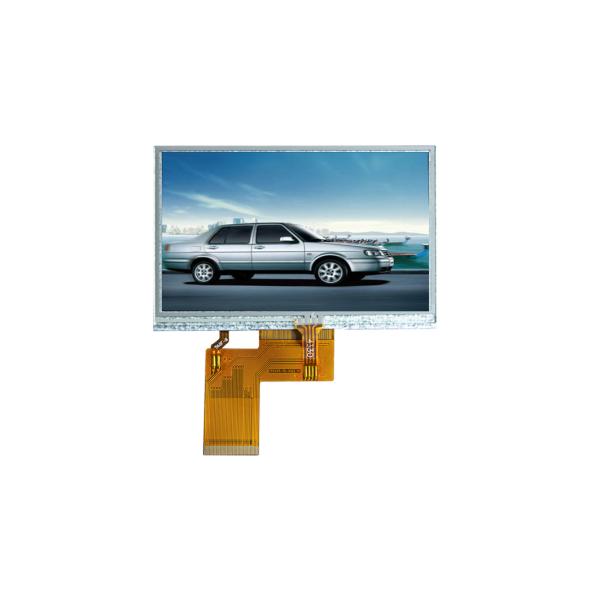

    4.3 inch lcd display 480*272 Resolution resistive touch panel

    4.3 Inch LCD touch screen display for Automotive Monitors with 500:1 Contrast Ratio


    Product Description:


    HC043TE30040-B80V.1 is a 4.3-inch TN display featuring a resistive touch panel. With its 480x272 resolution and 300 nits brightness, it delivers crisp and clear visuals for applications like digital film scanners, car monitors, or automotive diagnostic tools and chemical analyzers. It is technologically equipped with the 40-pin RGB interface which can ensure stable connectivity and data transmission. Also, this display has an outline dimension of 105.5mmx67.2mm*4.05mm and shows an active area of 95.04mm*53.856mm. Its 500:1 contrast and responsive touch layer prioritize accuracy and durability over flashy specs.


    General Specification:

    P/N
    HC043TE30040-B80V.1
    Size4.3inch
    Display type
    Normally White, Transmissive
    Resolution480*272
    Outline Dimension(mm)105.5(W )*67.2(H)*4.05(T)mm
    Active Area(mm)95.04(W)*53.856(H)mm
    Brightness(cd/m²)300
    Viewing Angle(L/R/T/B)70/70/50/70
    Interface40pinRGB
    Operation Temperature-20~70℃
    Storge Temperature-30~80℃
    Aspect ratio16:9
    Contrast ratio500
    Applicationdigital film and slide scanners, automotive monitors, chemical analyzers and automotive diagnostic tools.


    Pin assignment:


    Electrical Characteristics


    ItemSymbolMINTYPMAXUNITTest Condition
    Supply VoltageVf-21-VIf=20mA
    Supply CurrentIf-20-mA-
    Life Time-20000--hrsIf=20mA


    Product drawings:



    4-4.3inch lcd display series:



    4-4.3inch LCD Display Sizes


    Warm reminds:if models listed below can't meet your requirements,customization can be made according to your specific requirements but it is not limited to LCM,RTP,CTP,driver board.etc.
    No.SizePart No.LCD typeResolutionOutline dimensionActive areaInterfaceContrast ratioBrightnessOperation temperatureStorage temperature
    14"HC040I*30021-C82IPS480*48074.66*76.54*2.15mm71.856*70.176mm40pinRGB800300-20~70℃-30~80℃
    24"HC041IXA5030-F77IPS1280*640106.9*61.9*2.9mm92.544*46.272mm40pinRGB15001500-40~105℃-40~105℃
    34"HC040I*30021-C82V.CIPS480*48086*86*37.5mm71.856*70.176mm40pinRGB800250-20~70℃-30~80℃
    44.3"HC043TE20029-B58TN480*272105.5*67.2*2.9mm95.04*53.856mm40pinRGB500200-20~70℃-30~70℃
    54.3"HC043IG30029-D92IPS800*480105.5*67.2*2.9mm95.04*53.86mm12pinSPI1200300-20~70℃-30~80℃
    64.3"HC043IG30029-D92V.1IPS800*480105.5*67.2*4.05mm95.04 ×53.856mm12pinSPI500280-20~70℃-30-80℃
    74.3"HC043TE20029-B55TN480*272105.5*67.2*2.9mm95.04*53.86mm40pinRGB500200-20~70℃-30-80℃
    84.3"HC043TE30029-B03V01TN480*272105.5*67.2*2.9mm95.04*53.86mm40pinRGB500300-20~70℃-30-80℃
    94.3"HC043TE30029-B03V.CTN480*272105.5*67.2*4.5mm95.04×53.856mm40pinRGB500300-20~70℃-30-80℃
    104.3"HC043TE45031-B03TN480*272105.5*67.2*2.9mm95.04*53.86mm40pinRGB500450-20~70℃-30-80℃
    114.3"HC043TE50029-B03TN480*272105.5*67.2*2.9mm95.04*53.86mm40pinRGB500500-20~70℃-30-80℃
    124.3"HC043TE50029-B03V02TN480*272105.5*67.2*2.9mm95.04*53.86mm40pinRGB500500-20~70℃-30-80℃
    134.3"HC043TE80031-B80TN480*272105.5*67.2*2.9mm95.04*53.86mm40pinRGB500800-20~70℃-30-80℃
    144.3"HC043TE78040-B80TN480*272105.5*67.2*4.0mm95.04*53.868mm40pinRGB500780-20~70℃-30-80℃
    154.3"HC043IE30031-B80IPS480*272105.5*67.2*3.0mm95.04*53.856mm40pinRGB800300-20~70℃-30-80℃
    164.3"HC043TE30040-B80V.1TN480*272105.5*67.2*4.05mm95.04×53.856mm40pinRGB500200-20~70℃-20~70℃
    174.3"HC043TE40040-A46V.1TN480*272104.7×66.4×4mm95.04×53.856mm40pinRGB500400-20~70℃--20~70℃
    184.3"HC043IG80030-B56IPS800*480105.5*67.2*3.0mm95.04*53.856mm40pinRGB800800-20~70℃-30~80℃
    194.3"HC043IE40029-F47IPS480*272105.5*67.2*2.9mm95.04*53.86mm40pinRGB800400-20~70℃-30~80℃
    204.3"HC043IE50029-D65IPS480*272105.5*67.2*2.9mm95.04*53.86mm40pinRGB800500-20~70℃-30~80℃
    214.3"HC043IE50029-D65V.CIPS480*272105.5*67.2*4.35mm95.04*53.86mm40pinRGB800450-20~70℃-30~80℃
    224.3"HC043IEA0029-B03HIPS480*272105.5*67.2*2.9mm95.04*53.86mm40pinRGB8001000-30~85℃-30~85℃
    234.3"HC043IG50029-D20IPS800*480105.5*67.2*2.9mm95.04*53.86mm40pinRGB1200500-20~70℃-30~80℃
    244.3"HC043IGA0029-D20HIPS800*480105.5*67.2*2.9mm95.04*53.86mm40pinRGB12001000-30~85℃-30~85℃


    Customization:


    FAQ:
    Q1. Can I have a sample order for LCD Display
    A: Yes, we welcome sample order to test and check quality
    Q2. What about the lead time?
    A: Usually 4~5 days for sample orders if goods are in stock, and 4~6 weeks for mass production (basing on the quantity and product).
    Q3. How do you ship the goods and how long does it take to arrive?
    A: Ship by DHL, UPS, FedEx.
    Q4. How to proceed an order for LCD Display?
    A: Firstly let us know your requirements or application.
    Secondly We quote according to your requirements or our suggestions.
    Thirdly customer confirms the samples and places deposit for formal order.
    Fourthly We arrange the production.
    Q5: Do you offer guarantee for the products?
    A: Yes, we offer 1 years warranty to our products.
    Q6: How to deal with the faulty?
    A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
    B.Besides danmage caused by human factors, within one year warranty from the start of shipping.
    If there are special conditions, the warranty time will be separately notified.
